Which Flexible Heater Fits -50°C to 400°C Duty?

Key Takeaways

• Silicone rubber heaters suit -50°C to about 230°C and tolerate moisture and mechanical flexing.
• Polyimide film heaters offer thin, low-outgassing coverage for instruments and optics to about 200°C.
• PET film heaters are limited to roughly 120°C, making them appropriate only for low-temperature surfaces.
• Thick film on stainless steel or ceramic supports duty well past 400°C for platens, dies, and fluid-contact modules.
• Quotes are returned in one business day, and samples typically ship 7–10 days from an approved drawing.

First Define the Thermal Goal and Its Constraints

Choosing a flexible heater starts with the duty, not the material. Record the target surface temperature, required ramp-up time, allowed temperature non-uniformity, available voltage and current, the physical footprint, and whether the heater sees moisture, solvents, vacuum, or repeated flexing. These operating limits exclude most constructions before wattage is calculated.

Published construction limits for this factory are roughly -50°C to +400°C overall: silicone rubber typically serves to 200–230°C, polyimide film to 200°C, PET film to 120°C, and thick film on stainless steel or ceramic can extend well past 400°C. Space also matters: the smallest outline is 10 × 10 mm and the largest single piece is 1 × 2 m.

Match the Construction to the Duty

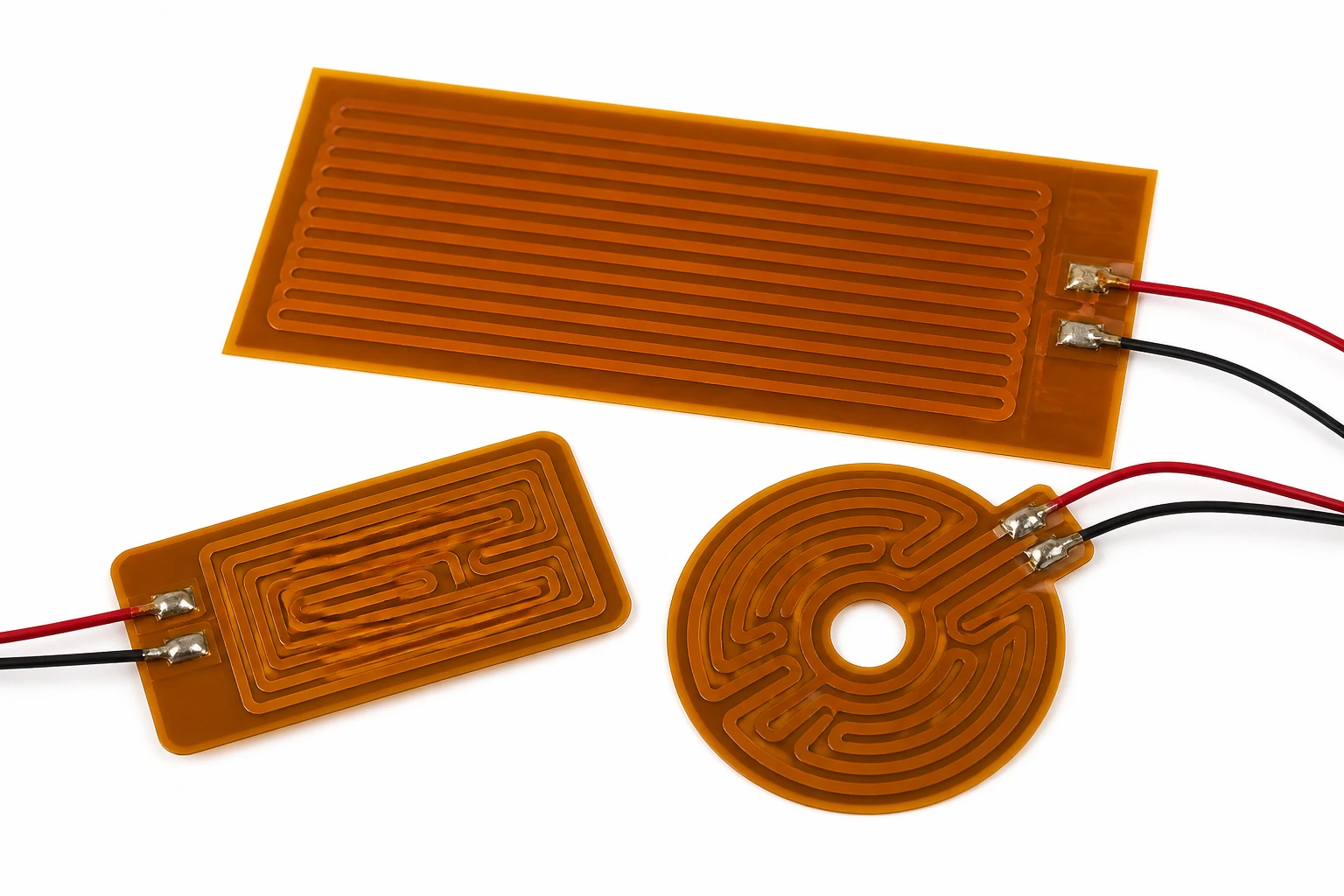

Thick film on stainless steel or ceramic suits the highest-temperature platens, dies, and semiconductor stages because the substrate survives repeated thermal cycling without a polymer ceiling. Polyimide flexible heaters are the usual choice where a thin etched-foil heater must follow a small radius, resist solvents, or operate under vacuum at up to 200°C. Silicone rubber heaters take over when the surface is uneven, the environment is wet, or the assembly must tolerate mechanical abuse. PET film heaters fit only low-temperature tasks such as battery enclosure condensation control under roughly 120°C.

The trade-off is honest: the higher the temperature and chemical resistance, the stiffer or thicker the construction tends to be. A polyimide flexible heater is not a drop-in replacement for a thick film stainless steel plate, and silicone rubber cannot always match the flatness of an etched polyimide circuit. Choose the substrate by the hardest environmental constraint first.

Selection Criteria That Exclude Constructions Early

After temperature, check these in order:

• Watt density and surface temperature: select a watt density that reaches the required surface temperature under worst-case heat loss, not just in open air. The final value is confirmed on the drawing and during technical review.
• Substrate compatibility: verify the adhesive backing or bonding method against the mating surface. Some plastics cannot accept the cure temperature of a bonded silicone heater.
• Flexibility and bend radius: specify the minimum radius the heater must survive during installation and service. Etched polyimide circuits tolerate tighter bends than thick film plates.
• Moisture, chemicals, and vibration: encase exposed elements or route leads through strain relief when the heater sees washdown, solvent vapor, or engine vibration.
• Agency approval needs: identify whether the assembly falls under UL 499, IEC/EN 60335, IEC 60730, or automotive/medical systems requiring IATF 16949 or ISO 13485 documentation.

Design Walk-Through: From Heat Load to Sensor Placement

Start by estimating the power required to raise the target mass to temperature in the allowed time, then add steady-state losses from conduction, convection, or radiation. Divide that total by the available heated area to get the required watt density. If the result exceeds the construction limit, increase the area, reduce the ramp rate, or add insulation before changing the material.

Circuit layout should distribute wattage uniformly across the thermally active area, with reduced power near cutouts, holes, or lead exits to avoid hot spots. Position an RTD or thermocouple near the highest-temperature region but not directly under the lead termination. For a 12 V flexible heating element or other low-voltage bus, current draw and trace resistance become the limiting factors, so the resistance and tolerance are set on the approved drawing.

Integration Notes: Bonding, Control, and Strain Relief

Choose pressure-sensitive adhesive for flat, low-temperature surfaces; cured bonding or vulcanizing for silicone heaters on metal; and no adhesive where the heater is clamped or vacuum-held. Use a thermal interface material or a flat, clean substrate to prevent air gaps that drive surface temperature above the setpoint.

Over-temperature protection can be a snap thermostat, thermistor, RTD, or thermocouple wired to an external controller. PTC self-regulating heater assemblies limit power automatically, but they still require a defined thermal path. Route leads with a strain relief loop and specify lead type, length, and insulation on the drawing.

Validation and Documentation You Can Expect

For a custom film heater or flexible heating element, expect at minimum resistance, insulation resistance, and hipot test records after assembly. Thermal imaging can confirm surface uniformity and detect a misaligned circuit before the part ships. Samples normally ship 7–10 days from an approved drawing, with a quote in one business day, so the test data can be reviewed before committing to production.

Send the Thermal Boundary Conditions

If you can share the target temperature, ramp rate, available voltage, part dimensions, and the worst-case environment, we will recommend a construction and watt density against the published limits above. That keeps the first conversation on thermal design, not catalog guessing.

Specification Snapshot for -50°C to 400°C Heater Selection

Each construction changes the upper temperature limit, thickness, chemical tolerance, and agency path. Use these published boundary conditions to shortlist a flexible heating element before discussing watt density.

• Construction options: silicone rubber, polyimide (PI) film, PET film, thick film on stainless steel or ceramic, PTC self-regulating assemblies, epoxy heating plates.
• Temperature range: roughly -50°C to 400°C depending on construction; silicone typically to 200–230°C, polyimide to about 200°C, PET to about 120°C, thick film on stainless steel or ceramic well past 400°C.
• Size limits: smallest outline 10 × 10 mm; largest single piece 1 × 2 m.
• Electrical tests after assembly: insulation resistance, hipot, resistance; thermal imaging available for uniformity check.
• Standards referenced: UL 499, IEC/EN 60335, IEC 60730, UL 94 V-0, RoHS, REACH, CE, IATF 16949, ISO 13485; sensors per IEC 60751 and IEC 60584.
• Lead time: quote in 1 business day; samples 7–10 days from approved drawing.

Construction Comparison: Silicone vs Polyimide vs PET vs Thick Film

No single film heater construction is best for every duty. Silicone rubber accepts mechanical flexing and moisture; polyimide gives thin, low-outgassing coverage for instruments and optics; PET is the low-cost option when the surface stays below about 120°C. Thick film on stainless steel or ceramic moves the duty above 400°C and suits platens, dies, or fluid-contact modules where a rigid substrate is acceptable. For tubular or cylindrical duty, Thick Film Heating Tubes — UL 499 / IEC 60335 / RoHS is a separate construction path.

What to Put on the Drawing and Why

A custom film heater drawing should call out the quantities the factory actually controls:

• Watt density (W/cm² or W/in²): set from heat-loss calculation, not from catalog guesses; confirmed during technical review.
• Voltage and resistance with tolerance: drives circuit geometry and final performance.
• Substrate and thickness: silicone, polyimide, PET, thick film; overall thickness is construction-dependent and confirmed on the drawing.
• Adhesive backing: PSA, cure, or none; PSA changes thermal interface and service temperature.
• Lead type, length, insulation, and strain relief: define exit location and flex path.
• Sensor option: RTD, thermocouple, or thermistor; bimetal thermostats and temperature sensors can be supplied, with sensor accuracy per IEC 60751 or IEC 60584.

Final Selection Check and Next Step

Before releasing a drawing, confirm the upper surface temperature the substrate sees, the watt density required, and the lead termination environment. If multiple constructions meet the thermal need, choose by compliance path, thickness, and installed cost. Send the drawing or application details for a one-business-day quote, or use the heater drawing tool to define dimensions, voltage, and wattage. A thermal review will return a construction recommendation against the published limits above.
