How Do Custom Medical and Lab Heaters Get Ordered in 7-10 Days?

Key Takeaways

• A custom thin film medical or laboratory heater is quoted in one business day and sampled in 7–10 days from an approved drawing.
• Silicone rubber, polyimide film, PET film, and thick film on stainless steel or ceramic each suit different operating temperatures, from 120 °C to well past 400 °C.
• Specify voltage, wattage or watt density, target temperature, substrate, resistance tolerance, dielectric strength, insulation resistance, adhesive, lead type, and sensor option to avoid quote revisions.
• Medical and laboratory heaters can be supplied with RTD, thermocouple, thermistor, or thermostat control elements aligned to IEC 60751 or IEC 60584.
• Applicable compliance references include UL 499, IEC 60335, UL 94 V-0, RoHS, REACH, ISO 13485, and IATF 16949.

How Custom Heater Ordering Works Here, from RFQ to Delivery

For a medical or laboratory instrument, a thin film heater usually starts as a drawing: an outline with cutouts, a folded tail, a sensor pocket, and a defined mounting surface. The path from RFQ to delivery is deliberately short. Send a drawing and quantity; receive a quote within one business day. Approve the drawing; receive samples in 7–10 days. Production lead time is then confirmed per project, based on quantity, construction, and tooling.

Heating Film etches, laminates, die-cuts and tests in-house, so the order process does not split between a design house and a contract laminator. Procurement works from one technical file. With the flexible heater market projected to grow from USD 1.43 billion in 2026 to USD 1.85 billion by 2030 according to ResearchAndMarkets, lead-time predictability is becoming a normal supply-chain requirement rather than a special request.

What to Include in an RFQ So the Quote Is Accurate the First Time

A complete RFQ prevents revision loops. For medical and laboratory heaters, the most useful inputs are:

• Outline drawing: overall length, width, bend zones, holes, cutouts, and tail fold direction.
• Electrical specification: operating voltage, target wattage or watt density in W/in² or W/cm², and resistance tolerance.
• Substrate: polyimide, silicone, PET, or a thick-film heater on stainless steel or ceramic.
• Maximum operating temperature: polyimide and silicone typically to around 200 °C, PET to about 120 °C.
• Mounting method: PSA, cure-in-place adhesive, mechanical clamp, or no adhesive.
• Lead termination: wire type, gauge, length, orientation, and connector if required.
• Sensor: RTD per IEC 60751, thermocouple per IEC 60584, or thermistor, with location.
• Quantity and annual forecast: prototype, pilot, or production volume.
• Compliance references: UL 499, IEC/EN 60335, RoHS, REACH, ISO 13485, or IATF 16949 as applicable.

Any parameter not yet fixed is confirmed during technical review, not guessed on the quote.

Quotation and Sampling Timeline: Quote in 1 Business Day, Samples in 7-10 Days from an Approved Drawing

The published timeline has two fixed points. A completed RFQ gets a quote in one business day. Once the drawing is approved, sample heaters ship in 7–10 days. That sample build covers element etching or winding, lamination, potting if required, die cutting, lead termination, and electrical testing: insulation resistance, hipot, resistance, and thermal imaging.

For medical and laboratory programs, sample shipments may also include material certifications or clean-handling packaging when the drawing calls for it. Those additions are confirmed before the sample build starts.

Volume Tiers and Production Scheduling: How Quantity, Construction and Tooling Affect Lead Time

Heating Film does not publish a single volume-tier table because lead time is driven by quantity, substrate, element construction, sensor count, and tooling. Prototype and pilot builds often use soft tooling or laser cutting. Production volumes may add a steel-rule die, a dedicated lamination fixture, or a test nest. Those tooling steps are confirmed per project and stated on the quote. In-house test capacity scales with the order, so the same electrical and thermal checks used on samples repeat on production lots.

Packaging, Labelling, Palletization and Shipping Options for Flexible Heaters

Thin film heaters are shipped flat or lightly rolled, depending on size. Polyimide and PET parts are treated as crease-sensitive: rigid backer boards, separator sheets, or flat trays keep bend zones intact. Silicone rubber heaters can be stacked with release liners. Exposed sensor terminations are protected with ESD-safe materials when specified. Labels carry part number, revision, quantity, and RoHS/REACH marks. Volume orders are palletized and stretch-wrapped; courier, air, and sea options are selected by dimensions, destination, and required delivery date.

Incoterms, Payment Terms and Export Documentation

Quotes state an Incoterm, commonly EXW, FOB, CIF, DAP, or DDP depending on the buyer’s logistics. Payment terms are generally T/T or letter of credit, with any deposit or milestone structure confirmed on the quotation. Standard export documents include a commercial invoice, packing list, certificate of origin, RoHS and REACH declarations, and a CE declaration where the assembly falls under the relevant directive. The HS code is assigned by substrate and construction during quoting.

Reordering, Forecasting, Drawing Revision Control and Long-Term Supply for Production Programs

Once a heater is qualified, reorders are tied to the part number and drawing revision. A drawing change triggers a technical review and, where the thermal or electrical result shifts, a new sample. Forecasts can be used to reserve capacity for production programs. Quality documentation follows the applicable system, including IATF 16949 for automotive-adjacent programs or ISO 13485 for medical device supply chains.

Send a Drawing and Quantity for a Quotation

For a medical or laboratory heater quote, send the outline drawing, voltage, wattage or watt density, target temperature, and quantity. The quote comes back in one business day; samples follow in 7–10 days from an approved drawing.

Custom Thin-Film Medical and Laboratory Heaters Are Quoted in One Business Day and Sampled in 7–10 Days

For a custom thin film medical heater or laboratory heater, the ordering path is: send an outline drawing with voltage, wattage or watt density, target temperature, and quantity. A quote returns in one business day. Once the drawing is approved, samples ship from the factory in 7–10 days. The thermal design is then confirmed on the drawing, not from a catalog part number.

A medical or laboratory heater is specified by the mating surface and the thermal load. The drawing should state the substrate material, resistance and tolerance, watt density, dielectric strength, insulation resistance, adhesive backing if any, lead type and length, and sensor option. Those parameters are checked during technical review before the sample run.

Specification Snapshot for Medical and Laboratory Flexible Heaters

• Constructions: silicone rubber, polyimide film, PET film, thick film on stainless steel, thick film on alumina ceramic, PTC self-regulating assemblies, epoxy heating plates.
• Temperature range: roughly −50 °C to +400 °C depending on construction; silicone typically to 200–230 °C, polyimide to 200 °C, PET to 120 °C, thick film on stainless or ceramic well past 400 °C.
• Size limits: smallest outline 10 × 10 mm; largest single piece 1 × 2 m.
• Standards referenced: UL 499, IEC/EN 60335, IEC 60730, UL 94 V-0, RoHS, REACH, CE marking, IATF 16949, ISO 13485, IEC 60751, IEC 60584.
• Quote and sample timing: quote in 1 business day; samples in 7–10 days from an approved drawing.

Silicone, Polyimide, PET, and Thick Film Compared for Medical and Lab Thermal Loads

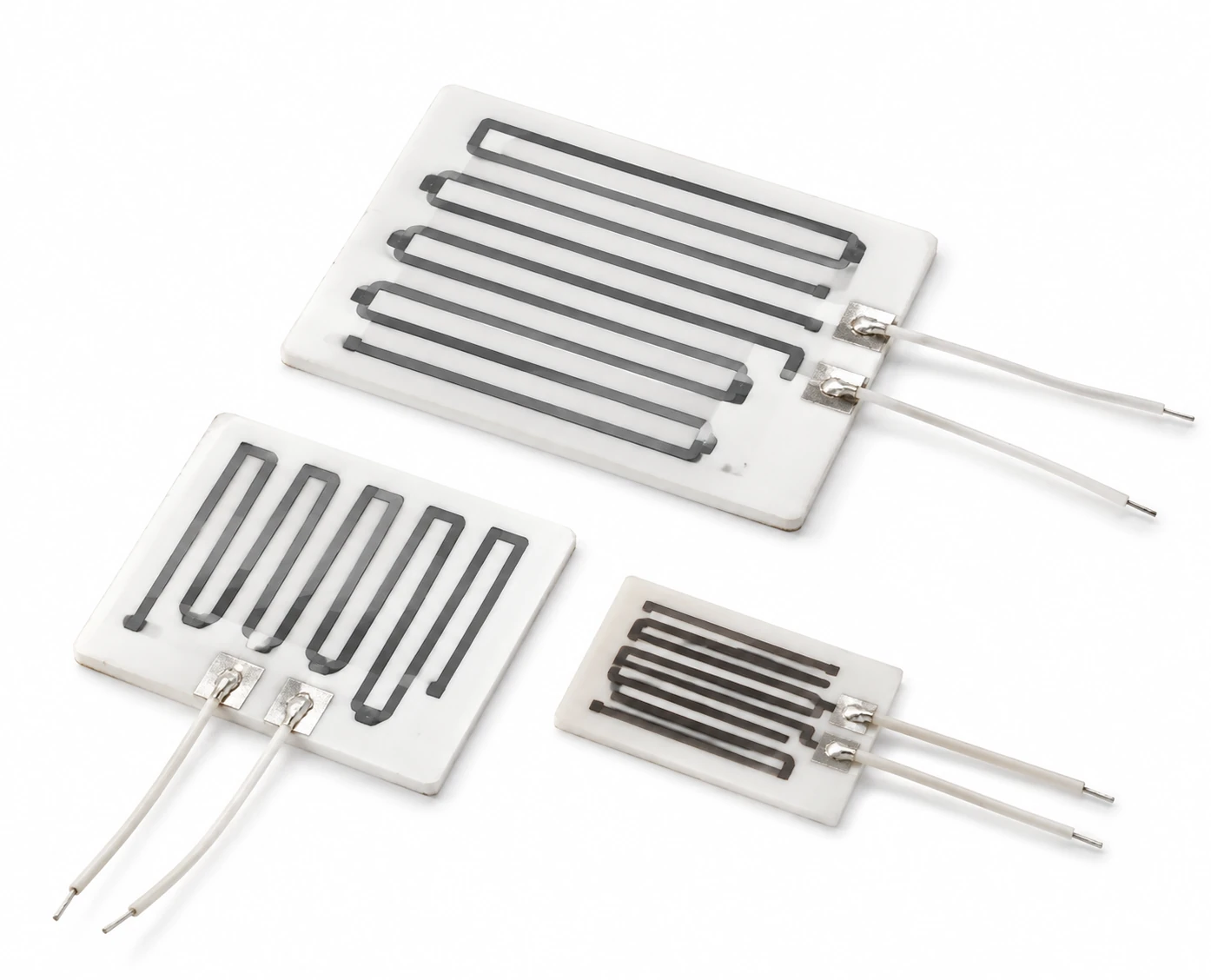

No single construction is correct for every medical or laboratory surface. Silicone rubber heaters conform to irregular housings and tolerate mechanical abuse, making them suitable for enclosures, battery or tank heating in lab equipment. Polyimide film heaters are thin and low-mass, so they suit sample blocks, optics, and analytical surfaces where the heater must follow a flat or curved part without adding thermal lag. PET film heaters are limited to lower temperatures and are used where cost and a thin profile dominate. Thick film heaters on stainless steel or alumina ceramic are selected for fluid warming, sterilizable surfaces, or high-temperature stages because the printed dielectric and resistor layers can be sealed against moisture and cleaned.

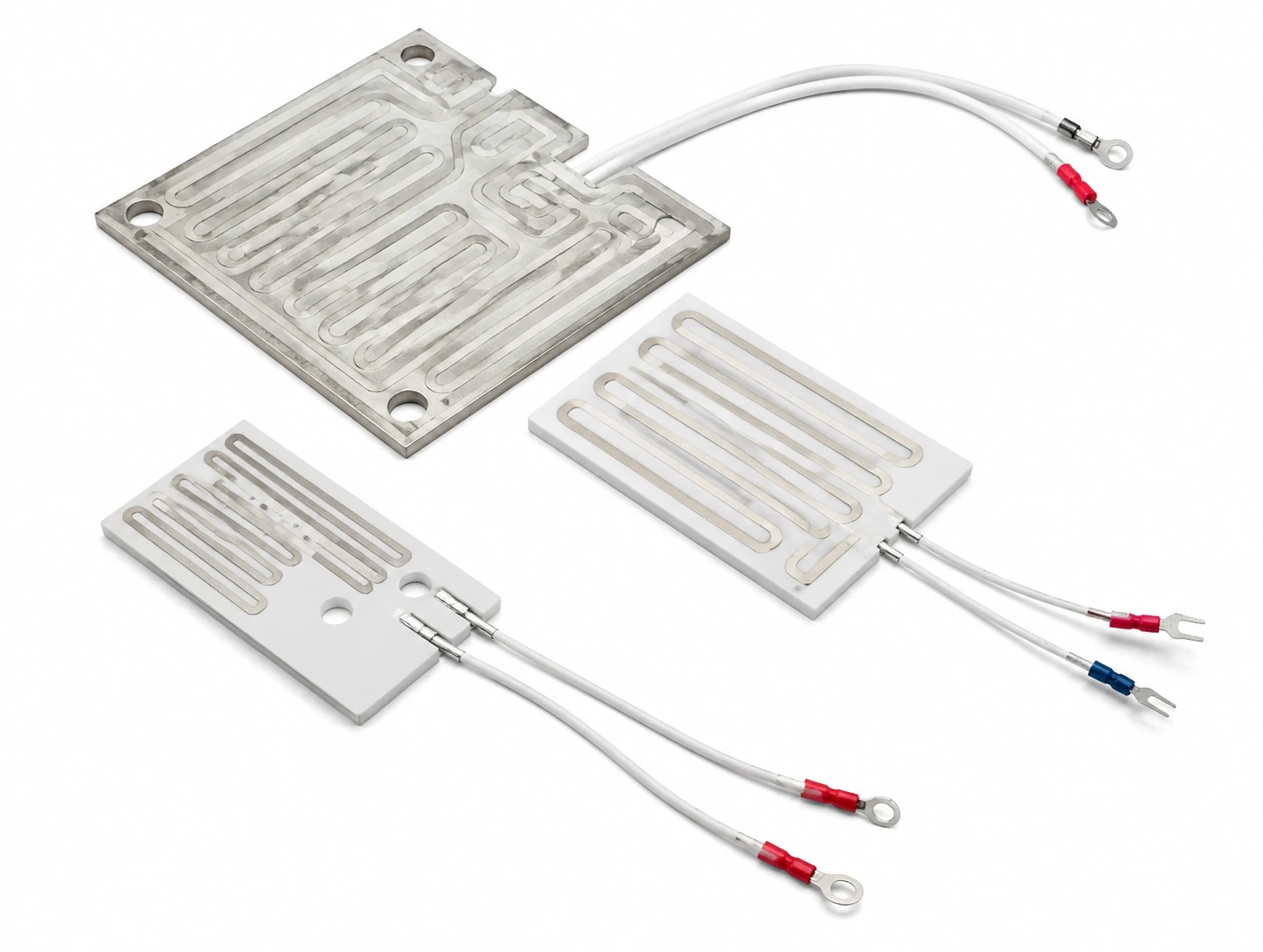

For instrument surfaces that require a thin, high-watt-density film heater, Medical Device Polyimide Heaters are specified with etched foil or printed elements and optional PSA backing. For reagent or fluid path heating, Medical Fluid Warming Thick Film Plates provide a rigid, cleanable heating surface with an integrated substrate.

Sensor and Control Integration for Medical and Laboratory Thermal Systems

Temperature sensors can be bonded onto or embedded in the heater for closed-loop control. RTD sensors follow IEC 60751, and thermocouple sensors follow IEC 60584. Bimetal thermostats are added for over-temperature protection, and NTC thermistors are used where the controller accepts a resistance-input loop. The sensor placement, lead orientation, and insulation are defined on the drawing because they change the thermal gradient and the control setpoint.

In-house electrical testing includes insulation resistance, hipot, and resistance checks, followed by thermal imaging to verify that the heating trace is uniform. These records support first-article qualification for ISO 13485 medical device supply chains and IATF 16949 automotive-adjacent programs.

Send an outline drawing, voltage, wattage or watt density, target temperature, and quantity for a one-business-day quotation. Samples follow in 7–10 days from an approved drawing.
