Battery Warmup Stays Uniform With a 0.15 mm Film Heater

Key Takeaways

• A 0.15 mm polyimide film heater supplies uniform low-profile heat for battery and electronics surfaces but must be matched to the substrate temperature limit.
• Silicone rubber heaters offer conformance and moisture resistance for battery packs; polyimide suits thin, high-resolution circuits; PET is cost-driven below 120°C; thick film on stainless or ceramic handles temperatures well past 400°C.
• Watt density, voltage, resistance tolerance, dielectric strength, insulation resistance, substrate, adhesive, lead termination, sensor type, and control method are confirmed on the drawing before sampling.
• Standards referenced include UL 499, IEC/EN 60335, IEC 60730, UL 94 V-0, RoHS, REACH; automotive and medical traceability is supported by IATF 16949 and ISO 13485.
• Quote turnaround is one business day; samples ship 7–10 days from an approved drawing.

Why material and construction choice drives heater performance and life

A battery module drawing comes into review with a 10 x 10 mm minimum outline, a polyimide heater face, and a pressure-sensitive adhesive that must survive thermal cycling. The engineer reviewing it is not selecting a part number; she is choosing a substrate, an element, and a termination set that will hold that profile over the product’s service life. For a custom film heater, material choice is the first reliability decision because it sets the continuous temperature ceiling, bending radius, adhesive options, and certification path. Flexible thermal circuits can be built as thin as 0.15 mm and still deliver precise heat flux, according to ht-heater.com, so the thickness limit is rarely the main constraint—temperature and chemical exposure usually are.

Substrate and construction options

Each construction is a labelled choice with different trade-offs.

• Silicone rubber — fiberglass-reinforced sheet, typically rated to about 200–230°C, good for wrap-around battery packs, tanks, and pipe heating, with high moisture tolerance and sheet sizes up to 1 x 2 m.
• Polyimide (PI) film — etched foil on Kapton-like film, continuous duty to about 200°C, thin profile down to 0.15 mm, lowest outgassing of the flexible films, suited to electronics, optics, and semiconductor stages.
• PET film — lower-cost flexible circuit, continuous use to about 120°C, for displays, enclosure anti-condensation, and mild warming.
• Thick film on stainless steel — screen-printed dielectric and resistive layers fired onto steel, capable well past 400°C, rigid, for platens, dies, and chemical tanks.
• Thick film on alumina ceramic — rigid, high watt density, dimensionally stable, clean surface for semiconductor, analytical, and medical instruments.
• PTC self-regulating — printed polymer-carbon element whose resistance rises with temperature, self-limiting without a controller, common in battery packs and mirror demisting.
• Epoxy heating plate — rigid laminated plate with foil or wire element, for low-to-mid temperature platens and instrument warmers.

Comparing temperature, thickness, watt density, and environment

Silicone gives the most flexibility and moisture tolerance at moderate cost. Polyimide gives the thinnest profile and lowest outgassing but generally lower watt density than thick film. PET is the cost leader below 120°C. Thick film on stainless steel or ceramic carries the highest watt density and temperature capability but is rigid. PTC trades fixed resistance for self-limiting behavior. Epoxy plates provide a machinable flat surface at lower cost than ceramic. Moisture resistance is highest in silicone and stainless thick film; chemical resistance is strongest in polyimide and ceramic; PET is limited to dry, mild environments.

Element options: etched foil, wire-wound, and printed PTC

Etched foil produces uniform heat flux across flat surfaces and keeps total thickness low. Tooling is photo-imaged, so repeatability is high once the drawing is approved. Wire-wound elements allow high-temperature operation and tolerate mechanical stress better, but heat distribution is less uniform across a flat area. Printed PTC elements are screen-printed and provide self-regulating resistance; they are often specified for battery heating films and anti-condensation because they require no external thermostatic control for over-temperature protection.

Backing, adhesive, and mounting options

Adhesive backing choice can limit the heater more than the substrate. Acrylic PSA has a lower service temperature than silicone PSA, and the exact limit is confirmed on the drawing. Mechanical mounting with clamps, potting, or vulcanizing removes the adhesive temperature constraint entirely. For vacuum or cleanroom use, adhesive-free polyimide or ceramic constructions are preferred because they avoid PSA outgassing.

Sensor and control components

Specifiers can add an RTD to IEC 60751, a thermocouple to IEC 60584, or a thermistor for point sensing. A thermostat or thermal cutoff provides independent over-temperature protection, while a controller gives closed-loop regulation. The sensor choice depends on accuracy, temperature range, and whether the control loop is local or system-level.

How to match material to application

Start with continuous operating temperature and peak temperature. Then review chemical and moisture exposure, outgassing limits, and required flexibility or bend radius. Next, confirm watt density and voltage requirements against the substrate. Finally, check the certification path. Battery module warming often lands on polyimide or silicone; fluid and chemical tanks on silicone or thick-film stainless; lab optics on polyimide or alumina ceramic; high-temperature dies on thick film; low-cost display warming on PET.

Compliance and environmental considerations

Material sets are reviewed for UL 94 V-0 flammability where the application calls for it. RoHS and REACH declarations are part of drawing review. IEC/EN 60335 and IEC 60730 provide the safety framework for many appliance and control applications, while IATF 16949 and ISO 13485 support traceability in automotive and medical programs. For cleanroom or vacuum use, polyimide and ceramic constructions with low-outgassing adhesives are the normal starting point.

Get a material and construction recommendation

If the duty cycle, outline, or substrate requirement is not settled, send the drawing or target specification. Heating Film reviews heater materials and construction against temperature, environment, and certification requirements, and returns a recommendation with a quote in one business day.

Material choice follows the thermal boundary, not the other way around

For a battery or electronics surface that needs low-profile, uniform warmup, the 0.15 mm etched foil polyimide heater is usually the first construction to review. It is thin enough for module gaps, tight enough for fine circuit patterns, and rated to roughly 200°C continuous. But the substrate decision is never one-size: silicone rubber is the better fit where compression, moisture sealing, or conformance dominates; thick film on stainless or ceramic is the only realistic option when surface temperatures must go well past 400°C; PET film is a cost-driven alternative below about 120°C. A supplier in the space, ht-heater.com, describes these as flexible thermal circuits with profiles as thin as 0.15 mm, which captures why the geometry and conductor pattern are designed together rather than purchased as a generic part.

This page consolidates the material and construction comparison from Part 1 into a specifier’s shortlist. Use the table to filter by temperature and environment, then confirm the electrical and interface parameters on the drawing.

Specification snapshot for quoting

• Constructions: silicone rubber, polyimide (PI) film, PET film, thick film on stainless steel, thick film on alumina ceramic, PTC self-regulating, epoxy heating plate.
• Temperature range: silicone typically to about 200–230°C; polyimide to about 200°C; PET to about 120°C; thick film on stainless/ceramic well past 400°C; operating range roughly -50°C to +400°C depending on construction.
• Form factor: smallest outline 10 × 10 mm; largest single piece 1 × 2 m; etched foil polyimide profiles around 0.15 mm where clearance is critical.
• Standards: UL 499, IEC/EN 60335, IEC 60730, UL 94 V-0, RoHS, REACH, CE marking; IATF 16949 and ISO 13485 for traceability; IEC 60751 and IEC 60584 for RTD and thermocouple sensors.
• Quote and samples: one business day for a quote; samples 7–10 days from an approved drawing.

Construction comparison across the full article

Parameters to confirm before drawing approval

• Watt density — specified in W/in² or W/cm² and matched to substrate temperature rise and thermal mass.
• Voltage and resistance — rated voltage and resistance with tolerance; validated by in-house resistance and hipot testing.
• Dielectric strength and insulation resistance — confirmed to UL 499 / IEC 60335 safety expectations and application environment.
• Substrate and thickness — selected for temperature, flexibility, dielectric rating, and available clearance.
• Backing and mounting — PSA, cure adhesive, or none; backing adhesive rated for the same temperature as the heater.
• Lead type and length — termination style, wire gauge, insulation, strain relief, connector if required.
• Sensor and control — RTD (IEC 60751), thermocouple (IEC 60584), thermistor, thermostat, thermal cutoff, or controller.
• Standards and declarations — UL 94 V-0, RoHS, REACH, IATF 16949 or ISO 13485 traceability where required.

How to choose between polyimide, silicone, and thick film

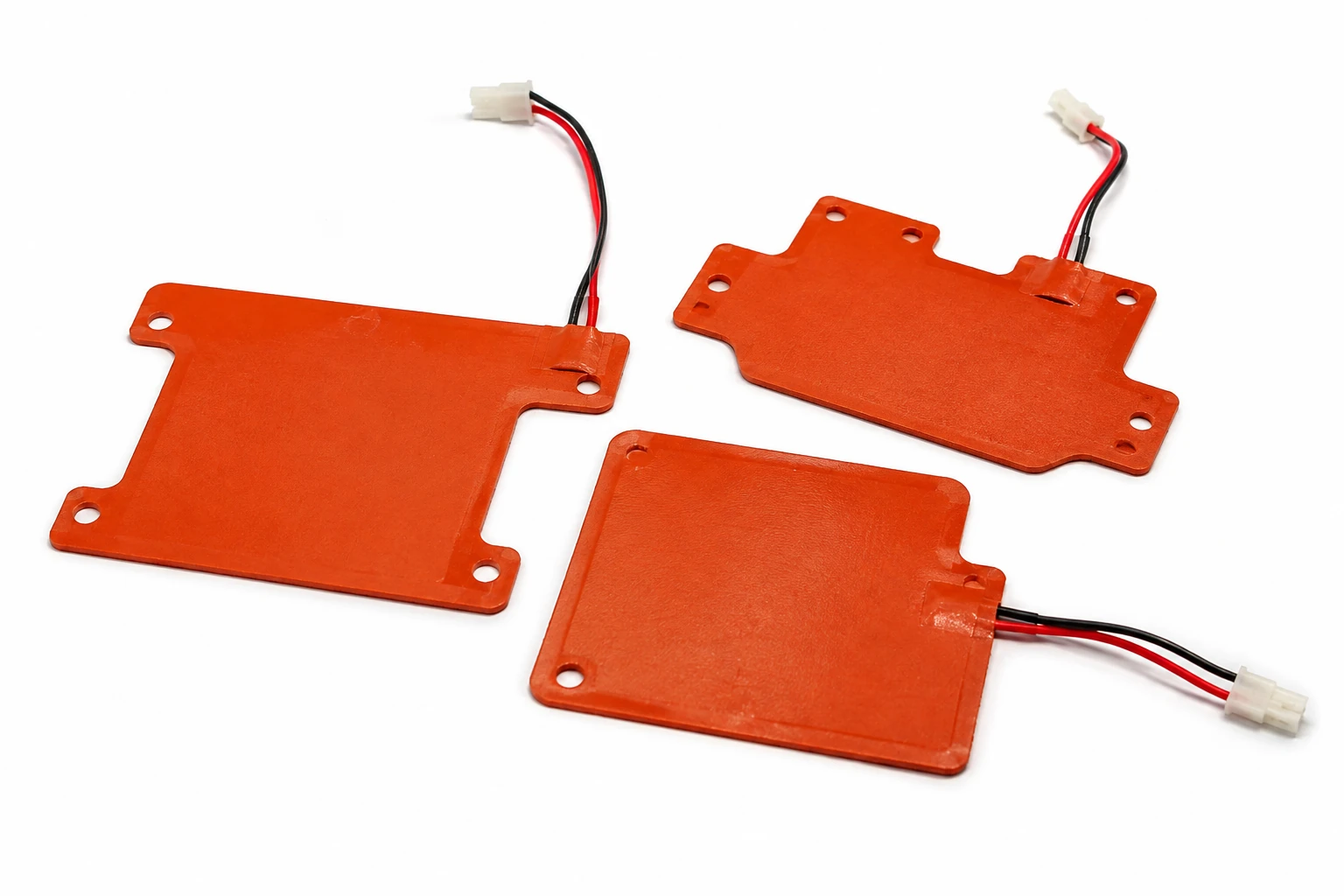

For a thin cell-contact or module-surface heater, start with Battery Polyimide Film Heaters. For a wrapped or compressed battery enclosure, Battery Pack Silicone Heaters usually fit the mechanical interface better. For a hot plate or fluid path where the heater is bonded to a rigid metal body, Stainless Steel Thick Film Heaters remove the temperature ceiling that polymer films impose.

Send the thermal boundary for a one-business-day quote

Heating Film reviews the substrate, temperature range, watt density, environment, and certification list against the drawing, then returns a material and construction recommendation with a quote in one business day. If the outline is still open, use the heater drawing tool to define the active area, lead exit, and sensor location before submission.
