Why Material and Construction Decide Heater Life

Film heating converts electrical resistance into surface heat, but the substrate and element architecture decide where that heater can survive. Temperature ceiling, chemical exposure, flex life, watt density and field reliability are driven by the material stack more than by resistance alone. A design engineer should select the construction first, then set the circuit geometry to hit the required voltage, resistance and watt density.

Substrate and Construction Options

Silicone rubber heaters

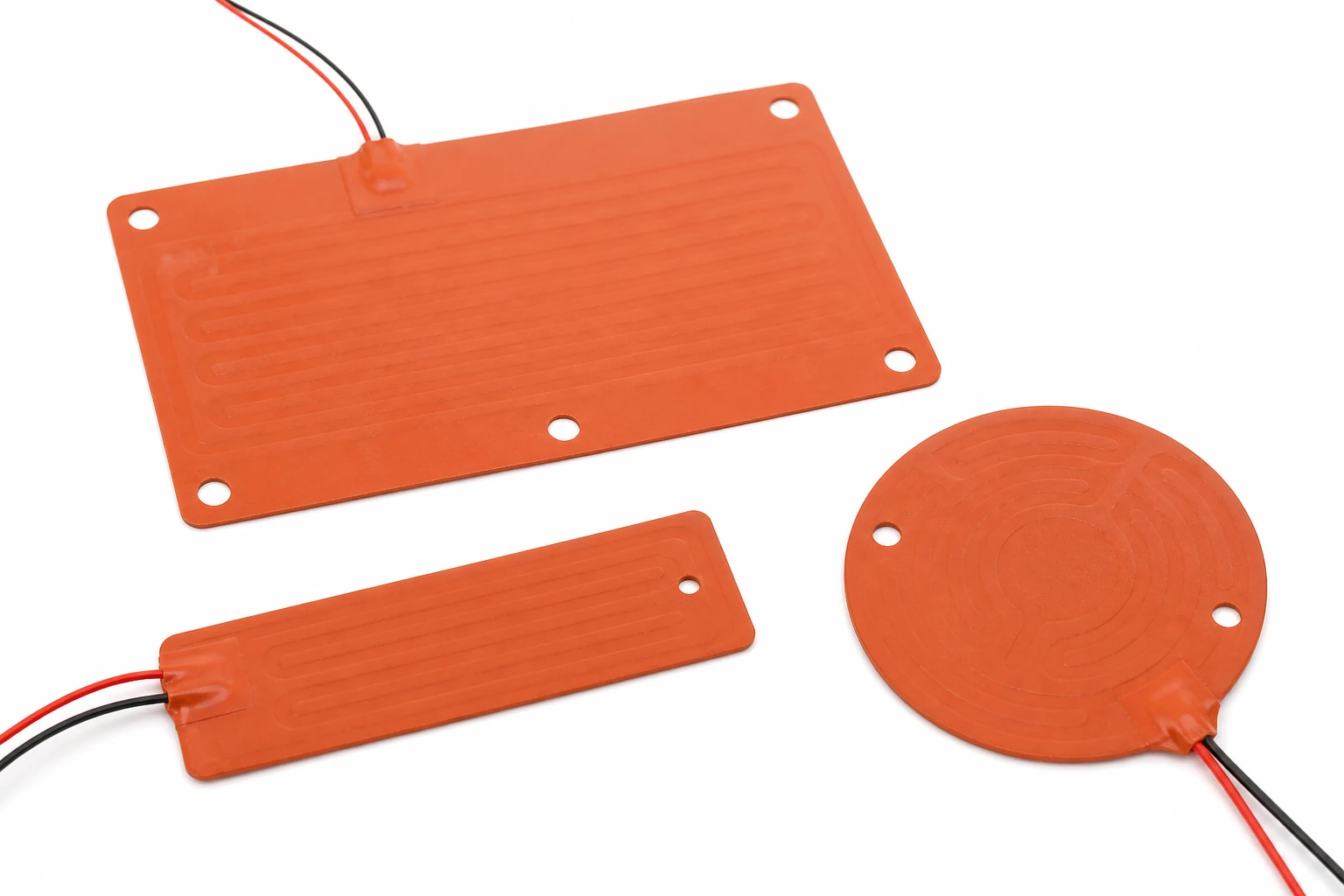

Fiberglass-reinforced silicone rubber encapsulates either etched foil or wire-wound elements. Silicone remains flexible at low temperatures, resists many oils and solvents, and suits tanks, drums, battery packs and outdoor enclosures where a formed heater is bonded or clamped in place.

Polyimide (PI) film heaters

Polyimide film heaters, sometimes specified as Kapton heaters, use an etched foil element between thin insulating films. The result is a low-mass, flexible heater for instruments, optics, semiconductor stages and 3D printer beds where thickness and outgassing matter.

PET film heaters

Polyester film is a lower-temperature flexible option. PET heaters are cost-effective for displays, panels, mirror demisting and other low-watt-density applications that do not demand sustained high heat.

Thick film on stainless steel

A dielectric layer and resistive trace are printed directly onto a stainless steel substrate. This construction supports high watt densities, fast thermal response and higher operating temperature, making it common on hot plates, dies, molds and fluid processing parts.

Thick film on alumina ceramic

Alumina ceramic offers very high electrical isolation, high temperature capability and excellent flatness. These heaters are used in semiconductor stages, analytical instruments and other high-temperature equipment where rigidity is acceptable.

PTC self-regulating assemblies

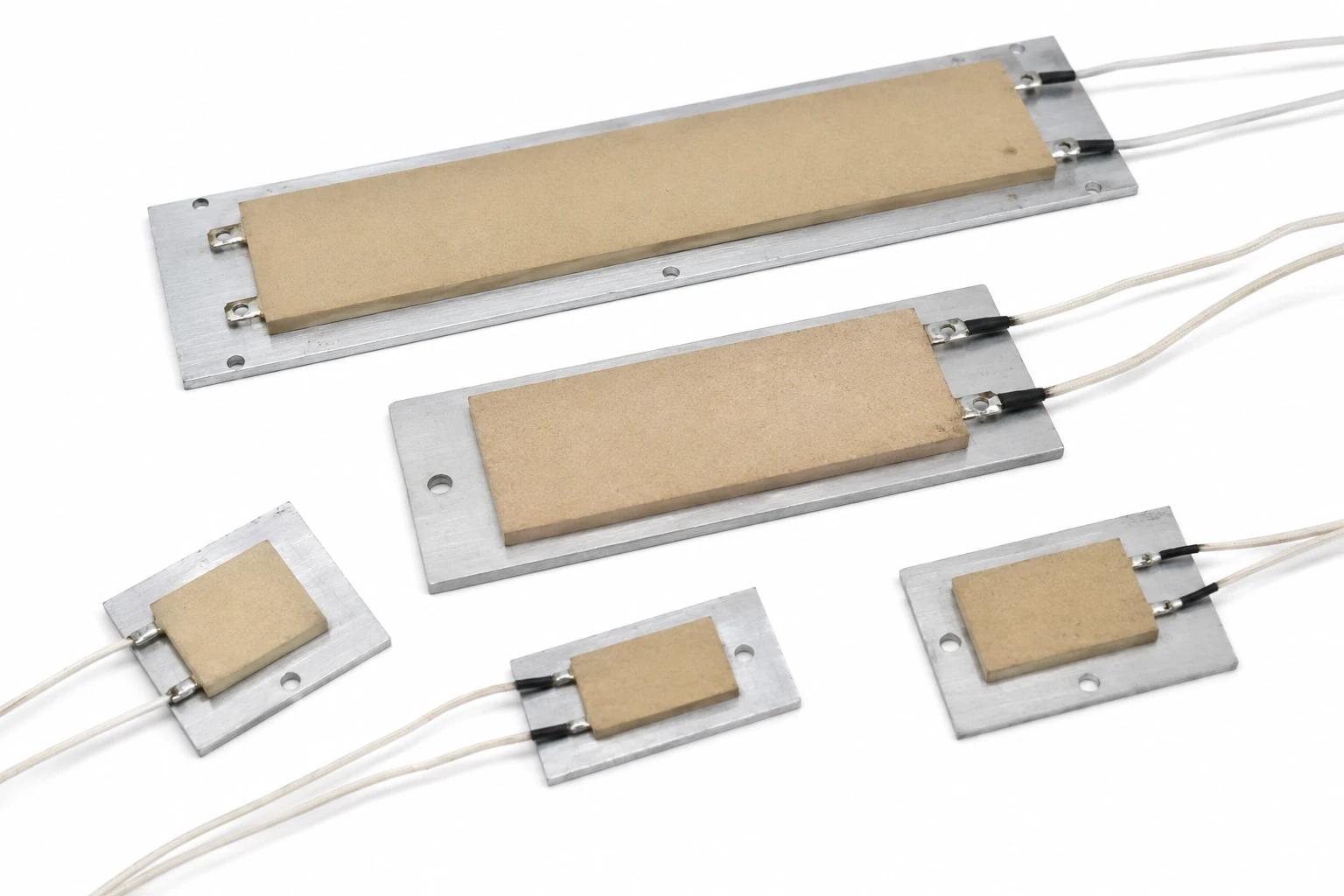

Printed PTC or carbon-based elements increase resistance with temperature, reducing current as the heater approaches its target range. This self-limiting behavior helps prevent over-temperature in battery packs, enclosures and low-power distributed heating.

Epoxy heating plates

Epoxy heating plates use an embedded element in a rigid epoxy body. They suit low-to-moderate temperature platens, laboratory devices and fluid warming where a sealed, rigid heater is preferred.

Comparing Materials by the Parameters That Matter

• Silicone rubber: good low-temperature flexibility, strong moisture resistance, moderate watt density, common on battery and tank heating.
• Polyimide: thin, flexible, low outgassing, good chemical resistance, used in instruments and semiconductor stages.
• PET: lowest continuous-use temperature of the flexible films, economical for low-power surface heating.
• Thick film on stainless steel: high watt density and fast response, less flexible, strong for industrial hot plates and dies.
• Thick film on alumina ceramic: highest temperature range and dielectric strength, rigid and flat.
• PTC: self-limiting temperature behavior, thickness varies, less uniform than etched foil, used for safe distributed heat.
• Epoxy: rigid, sealed construction, modest temperature range, useful for platens and instruments.

Element Options: Etched Foil, Wire-Wound and Printed PTC

Etched foil produces a thin, repeatable trace with excellent thermal uniformity. It is the preferred element for polyimide, PET and many silicone heaters when thickness and even heat distribution are critical. Wire-wound elements are robust and handle higher current in some designs, but they add thickness and can show localized temperature variation if not wound uniformly. Printed PTC relies on a resistive ink whose resistance rises with temperature, creating a self-limiting effect. Its uniformity is generally lower than etched foil, and the voltage must be matched to the PTC characteristic during design.

Backing, Adhesive and Mounting Options

Heaters can be supplied with pressure-sensitive adhesive, a bondable surface for thermal curing, or no adhesive for mechanical clamping. Acrylic PSA is limited to lower service temperatures, while silicone-based adhesives and direct vulcanizing or potting suit higher-temperature silicone heater installations. The adhesive layer affects both thermal resistance and peel strength, so the mounting method should be confirmed against the maximum continuous surface temperature.

Sensor and Control Components

Film heaters are often integrated with RTDs per IEC 60751, thermocouples per IEC 60584, or thermistors for local temperature sensing. Thermostats and thermal cutoffs add over-temperature protection. A controller closes the loop with PID or on-off control; the sensor type, placement and lead termination must be specified with the heater drawing.

How to Match Material to Application

1. Define the maximum continuous surface temperature and any peak excursion during fault conditions.
2. List moisture, chemical and solvent exposure.
3. Confirm form factor: bend radius, thickness, flatness and available mounting area.
4. Set voltage, resistance tolerance and required watt density.
5. Define sensing, control and compliance requirements.

That order separates construction choices from circuit tuning and prevents a heater from being quoted in a material that cannot survive the environment.

Compliance and Environmental Considerations

Material stacks can be specified to UL 94 V-0 flame class, RoHS and REACH. For cleanroom, optical and medical applications, polyimide and ceramic constructions are often reviewed for outgassing and particle cleanliness. Where automotive or medical quality systems apply, relevant production controls under IATF 16949 or ISO 13485 are referenced during technical review.

Request a Material and Construction Recommendation

Send the thermal target, available voltage, envelope and exposure conditions. Heating Film will return a written material and construction recommendation, with drawing-level confirmation of the watt density, termination and sensor choices.

Heater Construction Specification Snapshot

Construction	Typical temperature range	Form factor	Size envelope	Reference standards
Silicone rubber	to ~200–230 °C	flexible sheet, wrap or die-cut	10 × 10 mm to 1 × 2 m	UL 499, IEC/EN 60335, UL 94 V-0
Polyimide (PI) film	to ~200 °C	thin, low-profile etched foil	10 × 10 mm to 1 × 2 m	UL 499, RoHS, REACH
PET film	to ~120 °C	lightweight, low-cost flexible film	10 × 10 mm to 1 × 2 m	IEC/EN 60335, UL 94 V-0, RoHS
Thick film on stainless steel	>400 °C	planar or tube, high watt density	10 × 10 mm to 1 × 2 m	UL 499, IEC/EN 60335, RoHS
Thick film on alumina ceramic	>400 °C	rigid plate, high thermal stability	10 × 10 mm to 1 × 2 m	UL 499, IEC/EN 60335, ISO 13485
PTC self-regulating assembly	application-limited	printed or laminated PTC ink	drawing-defined	UL 499, IEC 60730
Epoxy heating plate	moderate, below substrate limit	bonded plate, tank or platen	drawing-defined	IEC/EN 60335, UL 94 V-0
