Custom Flexible Film Heaters Start as 10 mm by 10 mm Outlines

How a custom industrial film heater is built, from drawing to shipped part

A custom flexible film heater moves through a controlled sequence that starts with a dimensional drawing and ends with a tested part. The main stages are circuit layout and resistance definition, element formation, lamination or printing, sealing, lead termination, and electrical and thermal verification. Each stage is checked against the drawing before the part advances.

This staged flow matters because a changed trace width, adhesive thickness or lead exit can shift watt density, hot-spot behavior or dielectric clearance. Heating Film publishes the sequence so design engineers can specify the right construction at the review stage rather than correcting it later.

Materials and inputs

Flexible film heater constructions begin with a substrate chosen for the operating temperature. Silicone rubber sheet with internal fiberglass reinforcement is used for higher-temperature and mechanically tolerant silicone flexible heaters, typically up to about 200–230 °C. Polyimide film is used for thin, high-dielectric polyimide flexible heaters with a practical ceiling near 200 °C. PET film serves lower-temperature industrial film heaters up to roughly 120 °C. For thick-film designs, the resistive circuit is printed and fired onto stainless steel or alumina ceramic substrates, which supports service well past 400 °C depending on the assembly.

Resistive paths are formed from etched metal foil or wound resistance wire. Nichrome and similar alloys provide a repeatable resistance per square. PTC ink is used where self-regulating behavior is required. Adhesive backing may be PSA, acrylic, or silicone-based; some parts are specified without adhesive for mechanical clamping. Lead wire type, insulation class, length and exit are confirmed on the drawing.

Step-by-step stages in order

Circuit design and layout

Engineers define the heated area, watt density, voltage and resistance before any material is cut. The layout controls edge clearance, continuity and lead placement, and determines whether a foil or wire design meets the tolerance and duty cycle.

Element winding or foil etching

For wire elements, nichrome or an equivalent alloy is wound to the specified pitch. For foil circuits, the trace pattern is etched into the resistive alloy. The resulting element is measured and compared with the target resistance.

Lamination or thick-film printing and firing

Silicone and film heaters are laminated under heat and pressure to bond the element inside the insulation stack. Thick-film heaters are screen printed with resistive paste and fired to build the circuit on the substrate. This stage fixes the dielectric barrier and mechanical integrity.

Potting

Lead exits and termination areas are potted with a compatible compound where the design requires strain relief, moisture resistance or extra electrical clearance.

Die cutting

Laminated sheets are die cut to the specified outline. Smallest single outline is 10 mm × 10 mm; largest single piece is 1 m × 2 m. Cut edges are inspected for delamination or exposed conductors.

Lead termination

Lead wires are attached with mechanical or soldered terminations, insulated, and routed per the drawing. Termination quality directly affects field life.

Equipment and techniques, and why each matters for uniformity, dielectric integrity and life

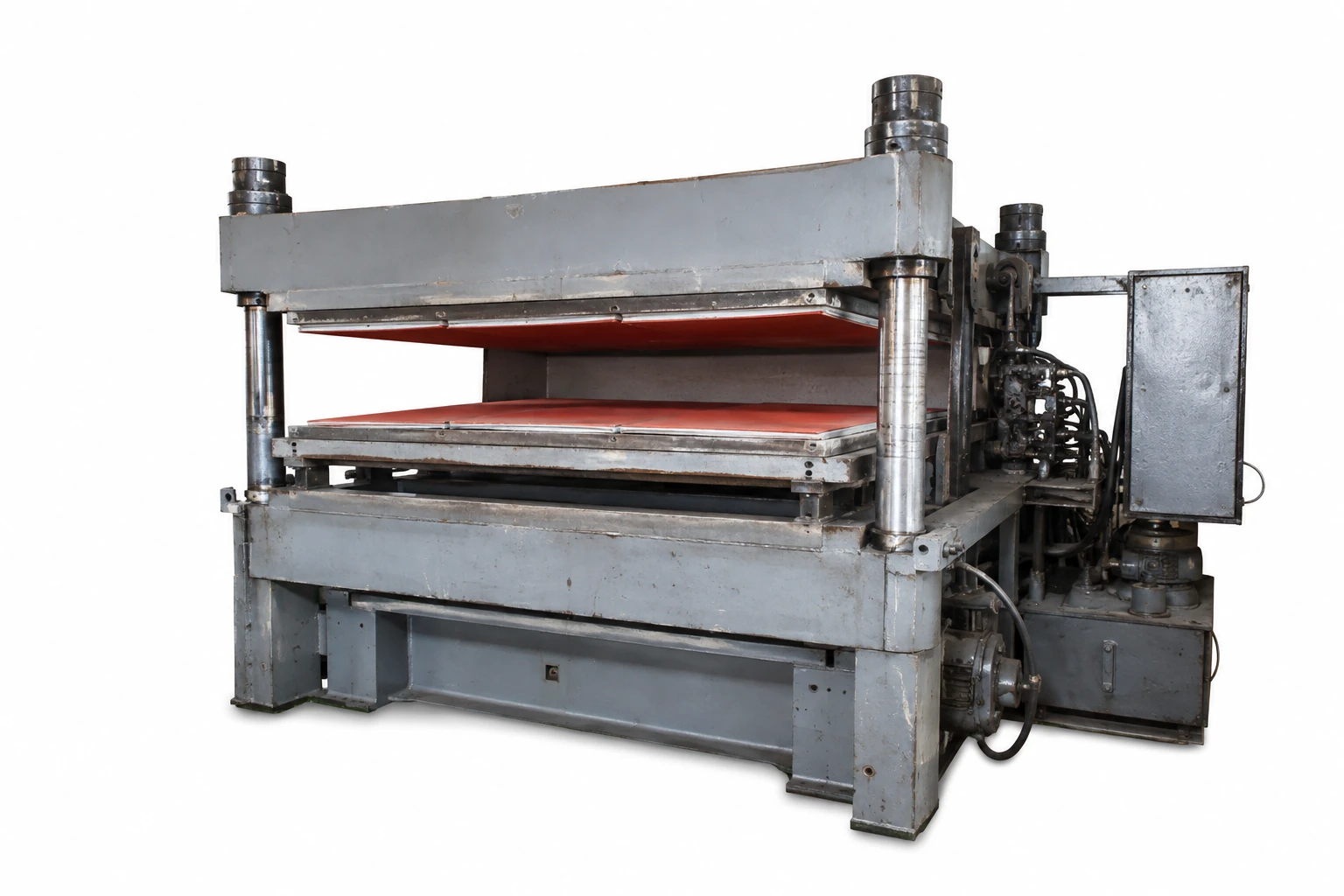

Lamination presses apply controlled temperature and pressure so the insulation stack does not trap air or shift the element. Etching and winding equipment maintain trace width and pitch; both affect resistance uniformity and local watt density. Screen printers and firing profiles control thick-film thickness on ceramic and stainless steel. Die cutting tools keep the heated outline stable from sample to production. Proper pot and termination techniques reduce mechanical stress at the lead exit, which is a common failure point in fielded flexible heating film.

In-line quality checkpoints: resistance measurement, insulation resistance and hipot testing, dimensional check, thermal imaging for hot spots

Every production run passes through several checkpoints. Resistance measurement confirms the cold resistance and tolerance against the drawing. Insulation resistance and hipot testing verify dielectric strength between the heating circuit and the outer surface. A dimensional check confirms outline, mounting features and lead length. Thermal imaging under power identifies hot spots and confirms heat distribution before packing. These checks catch process variation instead of relying on final visual inspection.

Capacity, repeatability and scale-up from sample to production volume

Repeatability depends on documented process parameters rather than operator preference. The same lamination profile, firing curve and test limits apply from the first sample to production volume. Market data from Market Data Forecast puts the global flexible heater market at USD 1.37 billion in 2025, which makes stable process control a practical procurement requirement as volumes grow. Heating Film quotes custom projects in one business day and can build samples 7–10 days after drawing approval.

Request a process or factory overview

For a manufacturer review, ask your technical contact for the current factory process overview. It covers material traceability, production checkpoints, test equipment and the documentation that accompanies each lot.

Key specification data for industrial flexible film heaters

For design review, Heating Film states the following build envelope. These values are verified on the production drawing rather than presented as a catalog approximation.

• Minimum outline: 10 × 10 mm
• Maximum single piece: 1 × 2 m
• Operating range: −50 °C to +400 °C depending on construction
• Quote turnaround: 1 business day from drawing or application details
• Samples: 7–10 days from approved drawing

A standard polyimide film heater with etched foil follows the same 10 × 10 mm minimum outline as a larger battery pad.

Choosing between silicone, polyimide, PET, and thick film

No single construction fits every application; the decision is thermal, mechanical, and chemical.

• Silicone rubber with fiberglass reinforcement: 200–230 °C max, tear-resistant, conforms to drums and battery modules. Accepts PSA, cure, or mechanical mounting.
• Polyimide film: to 200 °C, thin profile, fast response, low outgassing for optics, semiconductor stages, and medical instruments.
• PET film: to 120 °C, lower-cost, flat mounting; typical for PSA-backed enclosure anti-condensation and seat heating PET film elements.
• Thick film on stainless steel or alumina ceramic: above 400 °C, suitable for instant water heating modules, fluid warming plates, and dies.

For a PET-based part, PET film heaters with PSA backing supply a defined adhesive layer and UL 94 V-0 substrate option.

Requirements that improve repeatability in industrial film heater builds

Industrial buyers reduce field variance by fixing these parameters on the drawing:

• Watt density in W/in² or W/cm² and overall wattage at operating voltage.
• Resistance value and tolerance, confirmed from the circuit layout.
• Dielectric strength and insulation resistance requirements, matched to UL 499 or IEC 60335.
• Substrate and backing choice: PSA, cure, potted leads, or none.
• Lead type, length, insulation rating, and termination style.
• Sensor integration: RTD (IEC 60751), thermocouple (IEC 60584), or NTC thermistor.

Heating Film quotes from this information in one business day and builds samples 7–10 days after drawing approval.

Send a drawing for an industrial flexible film heater quote

Send outline, voltage, wattage or watt density, mounting, lead location, and sensor type. The technical review will confirm construction and test limits.
