What 110-120 V AC means for epoxy encapsulated plate heaters: at 110-120 V AC, power follows P = V²/R, so a 500 W element is 24.2 Ω and draws 4.55 A. Everything downstream of that — conductor gauge, connector rating, the switching device and the isolation the assembly needs — follows from those two numbers.
The Element at 110-120 V AC
Two equations do all the work: P = V²/R and I = P/V. At 110-120 V AC, 500 W is 24.2 Ω and 4.55 A.
| Worked example | 500 W at 110-120 V AC |
|---|---|
| Element resistance, R = V²/P | 24.2 Ω |
| Current, I = P/V | 4.55 A |
The span matters more than the example. At 110-120 V AC a 20 W element is 605 Ω and a 500 W element is 24.2 Ω — a factor of twenty-five in resistance, met by changing the conductor cross-section and the length of the path, both of which are constrained by the outline.
At mains voltage the difficulty is the opposite one. Current is modest — 4.55 A for the worked example — but the element is a long, fine conductor, and a low-wattage heater at 110-120 V AC is the hardest thing in this catalogue to build: 20 W means 605 Ω, which is a very long track to fit inside a small outline without the pitch becoming so tight that adjacent runs interact.
Where the arithmetic will not fit the outline, the usual answers are a lower supply voltage with a small power supply behind it, several circuits in series, or a different construction entirely. What does not work is thinning the conductor further: the track becomes the fuse.
Resistance tolerance is u00b110%, and power follows resistance inversely: a u00b110% tolerance band is the same band on the delivered wattage. Where the wattage matters — a warm-up to a deadline, a pack of heaters that must match — say so on the enquiry and the tighter band is selected and tested.
Isolation, Earthing and Safety Class
110-120 V AC is a mains supply, and the construction is built to match: mains-rated insulation, a protective earth connection or a double-insulated build, and creepage and clearance distances held between the element and any accessible surface.
Leakage current is the figure that surprises people. A large heated area behaves as a distributed capacitance to earth, so a big mains heater has a measurable leakage even when it is perfectly sound, and an RCD protecting several of them can trip on the sum. Where several elements share a circuit, allow for the total.
| Dielectric withstand | 2500 V AC, 1 minute |
|---|---|
| Insulation resistance | greater than 100 Mu03a9 at 500 V DC |
Every heater is tested to these before it ships, element to any exposed surface. A dielectric test is a pass or a fail, not a measurement — a part that passes at 2500 V is not one that may be run at 2500 V.
What an Epoxy Encapsulated Plate Heaters Is

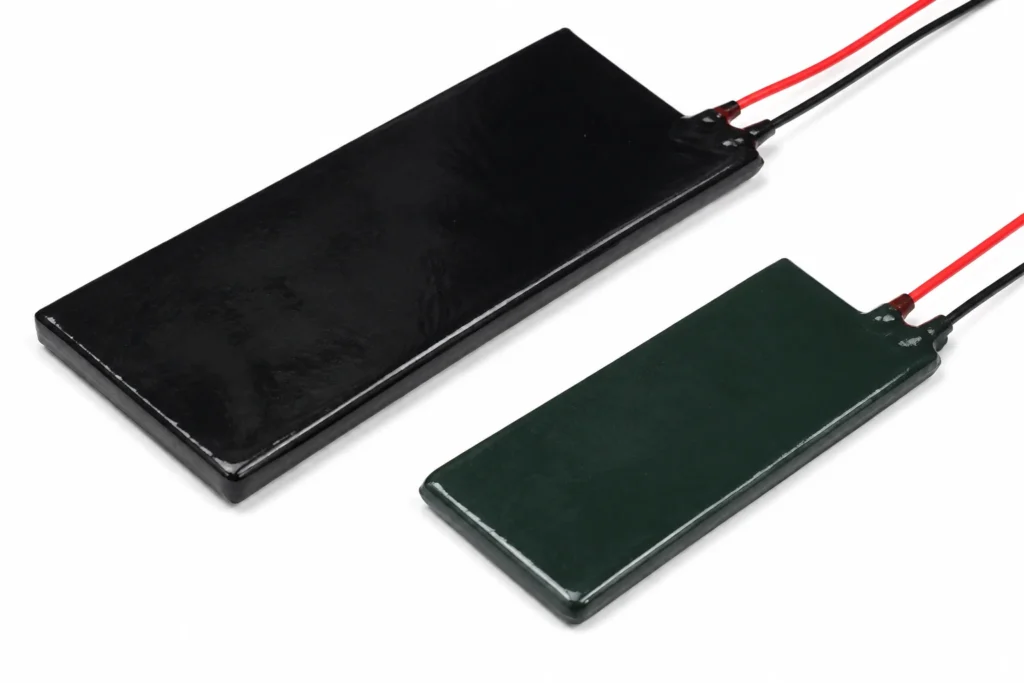

A flat, rigid, sealed heating plate: element potted in filled epoxy on aluminium, for conduction heating where a flexible heater will not stay flat.
A resistance wire or foil element vacuum potted in thermally conductive filled epoxy against an aluminium or steel plate. Rigid, flat, sealed, and thermally bonded to its own plate so the heat leaves the element through metal rather than through air.
The plate is the thermal path: the element is potted against it, so the metal spreads the heat before the load ever sees it. That is what buys uniformity, and it is also what makes the assembly slow — a bolted plate takes minutes to reach steady state where a film takes seconds.
| Element | resistance wire or foil, vacuum potted |
|---|---|
| Insulation system | thermally conductive filled epoxy |
| Total thickness | 6 mm to 15 mm |
| Maximum size, one piece | 400 x 600 mm |
| Continuous working temperature | 150 °C |
The continuous limit of 150 °C is set by thermally conductive filled epoxy. The element alloy would run far hotter; it is never the element that decides.
Switching an AC Element
AC switching has a zero crossing to hide behind. A zero-cross solid state relay makes and breaks at the crossing, which all but removes the switching transient and the conducted emissions that go with it — worth having on any installation that also has to pass an EMC test.
Control by burst firing — whole cycles on, whole cycles off, over a period of a second or more — rather than by phase angle. Burst firing generates almost no harmonics; phase angle control chops the waveform and is the reason a heater ends up in the EMC report at all. A heater has enough thermal inertia that a one-second period is invisible at the surface.
Size the relay for the inrush, not the running current, and heatsink it: a triac or SSR drops around one volt per amp of load, and that is real power to be got rid of inside the panel.
Attachment and Thermal Contact
The plate is drilled or tapped to your drawing and bolts to the machine. The heated face has to sit flat against the load; where it cannot, a thermal interface pad is worth more than extra wattage.
Allow for expansion. An aluminium plate 400 mm long grows about 1 mm between 20 °C and 130 °C, so a plate bolted rigidly at both ends will bow, and the bow lifts the middle of the heated face away from the load.
From the capability table: Tapped holes, clearance holes, studs or bonded.
The joint between the heated surface and the load carries every watt the element makes. Fill it: an interface pad, a thin film of thermal grease or a bonded assembly. Two dry surfaces bolted together are a thermal resistance, and that resistance appears as element temperature.
Leads and Terminations
Termination is specified on the drawing: lead length, gauge, insulation and the connector or tag at the end of it.
The lead exit is a thermal discontinuity as well as an electrical one. The joint between a fine element and a stranded lead is the hottest point of many heaters, so it is kept out of the highest watt density zone, strain relieved, and — where the exit sits in a hot area — insulated in PTFE rather than in silicone.
Control and Protection
This heater has no way of limiting its own temperature. Resistance heating draws roughly the same power whatever the temperature, so with the load removed, the fluid gone, the fan stopped or the sensor open circuit, the element keeps producing watts until something stops it.
The design must therefore contain a control device and, separately, a protective one: a controller with a sensor to hold the set point, and a bimetal thermostat or a one-shot thermal cutoff wired in series with the element to open the circuit if the loop ever fails. The two are not interchangeable — a controller that has lost its sensor cannot protect anything, which is exactly the fault the cutoff exists for.
The limit that matters is the epoxy's, at 150 °C, and it is reached at the element long before the plate face reads anything alarming. Put the limit device in the potting against the element, not on the outside of the plate.
Sensors can be built into the part: NTC thermistor, PT100 or PT1000 RTD, or a K-type thermocouple, fitted under the same insulation and tested with the heater as one assembly. A sensor laminated into the heater reads the heater; a sensor on the load reads the load. Both are legitimate, and the drawing has to say which is wanted.
How This Construction Fails
- Run at the bonded watt density in free air. The insulation reaches its limit within minutes and the element burns through where the local density is highest. Specify at 3 W/cm² only where the heater is genuinely bonded to metal over its whole area; unbonded, the figure is 0.5 W/cm².
- Loss of the control loop. An open-circuit sensor, a welded relay contact or a controller in manual leaves the element at full power with nothing watching it — the case the series thermal cutoff exists for, and the reason it must not be omitted to save a part.
- Overheating the encapsulant. The epoxy is the weakest link at 150 °C and it fails from the inside, where nothing is measuring; the plate face can look reasonable while the potting against the element is already cooking.
How to Specify One
This is a made-to-drawing part, so there is no catalogue number to quote. A quotation is built from the following, and the more of it that arrives with the enquiry the fewer rounds it takes:
- An outline drawing, or a sketch with dimensions: overall size, holes, cut-outs, radii and the lead exit position.
- The supply voltage, and whether it is AC or DC. The element is wound for one voltage; it is not a switchable range.
- The power required, or — better — the temperature to be reached and the mass or flow it has to be reached in. Given the second, the wattage can be calculated instead of guessed.
- What the heater is attached to, and how. This is what decides which watt density figure applies, and it is the question a quotation cannot proceed without.
- The ambient, and the lowest temperature the assembly must start from. A heater sized for a 20 °C start is undersized for a -30 °C one.
- Duty cycle: continuous, intermittent, or a warm-up to a deadline. Time to temperature is a specification, not a by-product.
- Sensor and protection: which sensor, where it goes, and which limit device is fitted in series with the element.
- The certification the end product is built to, named on the enquiry rather than after approval.
- Quantity and target price, because the construction that is right for fifty pieces is often not the one that is right for fifty thousand.
- The plate material, thickness and mounting hole pattern, and what the plate is bolted to.
Lead time: Samples 7-10 days from approved drawing; production 15-20 days.
Epoxy Encapsulated Plate Heaters — Capability Table
These are process limits for the construction, not the specification of one stocked item. Every line is what the factory can hold; what your part holds is fixed on your drawing.
| Parameter | Specification | Limit / note |
|---|---|---|
| Construction | Resistance wire or foil element potted in thermally conductive filled epoxy on a metal plate | Cured under vacuum so there are no voids in the heat path |
| Plate material | Aluminium 6061, 3 mm to 10 mm | Aluminium for spreading, stainless where the chemistry demands it |
| Total thickness | 6 mm to 15 mm | Plate plus encapsulation |
| Maximum size, one piece | 400 x 600 mm | Larger plates are built as multiple circuits on one plate |
| Dimensional tolerance | u00b10.5 mm on the plate, u00b11 mm on the encapsulation | |
| Supply voltage | 24 V, 48 V, 110 V, 220 V | Wound to order |
| Resistance tolerance | u00b110% | At 20 u00b0C |
| Watt density | 0.5 W/cmu00b2 typical, 3.0 W/cmu00b2 maximum | Against a load in contact; free-standing operation runs far lower |
| Continuous working temperature | -40 u00b0C to +150 u00b0C | Set by the epoxy, not by the element |
| Dielectric strength | 2500 V AC, 1 minute | Element to plate |
| Insulation resistance | greater than 100 Mu03a9 at 500 V DC | Also after 48 hours humidity conditioning |
| Ingress protection | IP65 as standard, IP67 with a moulded lead entry | The encapsulation is the seal |
| Mounting | Tapped holes, clearance holes, studs or bonded | Machined into the plate before potting |
| Sensor options | NTC, PT100 or thermostat potted into the same plate | Reads the plate, which is what the load actually sees |
| Certifications available | UL 499, IEC/EN 60335, RoHS, REACH, CE, IATF 16949 | Construction level |
Capability figures are for resistance elements encapsulated in thermally conductive filled epoxy on a metal plate. The +150 °C continuous limit is a property of the encapsulant, and it is the lowest limit of any construction in this catalog — the element and the plate would both tolerate far more.
