Duty temperature decides the construction before anything else does. At up to 80 °c, battery module epoxy heating plates is a candidate; the sections below set out what it will hold, what has to be true for it to hold it, and what fails first when it does not.
What the Up to 80 °C Band Requires
Comfort and condensation control: seat heating, mirror demisting, enclosure anti-condensation, battery pre-conditioning. Almost any construction reaches it, so the choice is decided by cost and thickness rather than by the temperature.
| Band | Up to 80 °C |
|---|---|
| This construction, continuous | 150 °C |
| Limited by | thermally conductive filled epoxy |
The band sits comfortably inside the 150 °C ceiling, which is where a heater should be specified: the margin between the working temperature and the insulation limit is what absorbs a poor thermal path, a warm ambient and a control overshoot without shortening the life of the part.
Why the Boundary Is Where It Is
80 °C is not a material boundary at all — every construction here passes through it — so the choice inside this band is decided by cost, thickness and area rather than by temperature. That is why printed film competes here and nowhere above it.
The engineering in this band is uniformity and control, not survival: comfort heating, condensation control and battery pre-conditioning all care about holding a few degrees evenly over a large area, which is a watt density and layout problem.

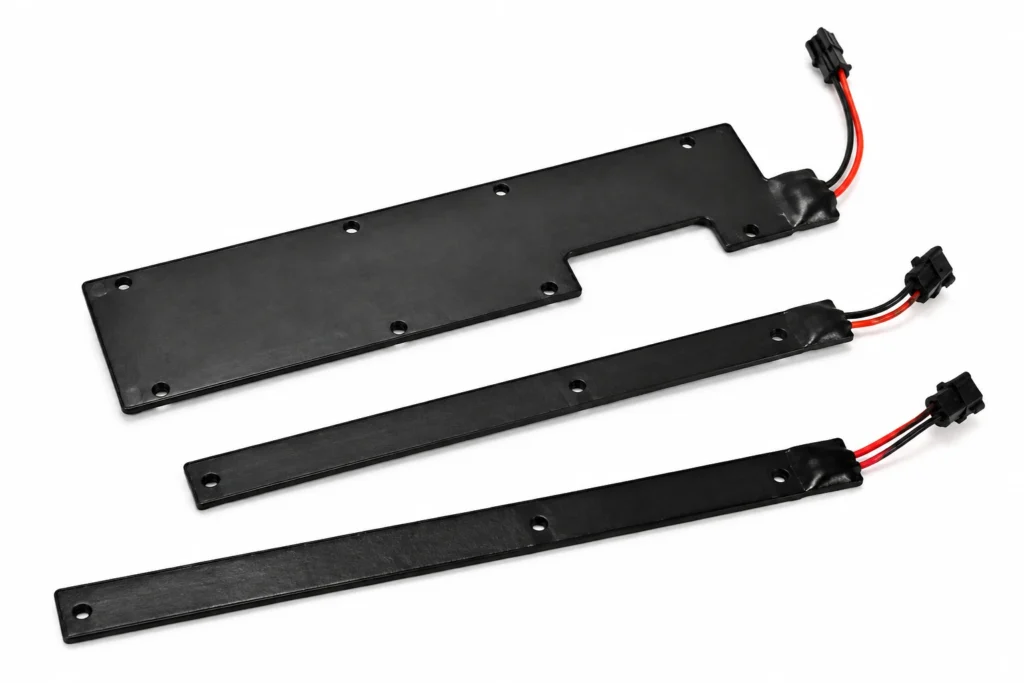

What a Battery Module Epoxy Heating Plates Is
Heating plates that sit under or between battery modules, potted flat so the whole cell face is in contact and no cell sees a hot spot.
A resistance wire or foil element vacuum potted in thermally conductive filled epoxy against an aluminium or steel plate. Rigid, flat, sealed, and thermally bonded to its own plate so the heat leaves the element through metal rather than through air. Against a module face the plate does the work a flexible heater cannot: it stays flat under clamping load and spreads a low watt density evenly across cells that must not see a gradient.
The plate is the thermal path: the element is potted against it, so the metal spreads the heat before the load ever sees it. That is what buys uniformity, and it is also what makes the assembly slow — a bolted plate takes minutes to reach steady state where a film takes seconds.
| Element | resistance wire or foil, vacuum potted |
|---|---|
| Insulation system | thermally conductive filled epoxy |
| Total thickness | 4 mm to 10 mm |
| Maximum size, one piece | 300 x 500 mm |
| Continuous working temperature | 150 °C |
The continuous limit of 150 °C is set by thermally conductive filled epoxy. The element alloy would run far hotter; it is never the element that decides.
Which Temperature Is Being Held
Three temperatures matter and they are not the same number: the element temperature, the temperature of the surface being heated, and the ambient. A heater rated for a continuous working temperature is rated at the element — the hottest point in the assembly, and the one nothing on the outside is measuring.
The gap between element and surface is the thermal path. Bonded to metal it may be a few degrees; across an air gap, a void in the adhesive or a dry clamped joint it can be tens of degrees, and every one of them appears at the element rather than at the load.
Which is why sensor position is a drawing item. A sensor laminated into the heater protects the heater; a sensor on the load controls the load. Assemblies that have to do both carry two: a control sensor where the process is, and a limit device against the element.
Uniformity across the heated face is u00b12 u00b0C across the plate face, achieved by varying the element pitch across the outline rather than by adding wattage — the cold corner of a heated plate is a layout problem, and more power makes the hot part hotter.
Watt Density: the Two Figures
Two watt densities are quoted because there are two thermal situations. With nothing conducting heat away, 0.2 W/cm² is what the insulation survives. Bonded to a heat sink over the full outline, 1 W/cm² is. Anything in between depends on the quality of the joint, and the joint is the customer's to make.
The failure is silent and quick: the element does not know how it is mounted, so at 1 W/cm² in free air the heat simply accumulates in the insulation until it degrades. This is the single most common way these heaters are destroyed, and it happens on the first run rather than after a year.
Control and Protection
This heater has no way of limiting its own temperature. Resistance heating draws roughly the same power whatever the temperature, so with the load removed, the fluid gone, the fan stopped or the sensor open circuit, the element keeps producing watts until something stops it.
The design must therefore contain a control device and, separately, a protective one: a controller with a sensor to hold the set point, and a bimetal thermostat or a one-shot thermal cutoff wired in series with the element to open the circuit if the loop ever fails. The two are not interchangeable — a controller that has lost its sensor cannot protect anything, which is exactly the fault the cutoff exists for.
The limit that matters is the epoxy's, at 150 °C, and it is reached at the element long before the plate face reads anything alarming. Put the limit device in the potting against the element, not on the outside of the plate.
Sensors can be built into the part: NTC thermistor, PT100 or PT1000 RTD, or a K-type thermocouple, fitted under the same insulation and tested with the heater as one assembly. A sensor laminated into the heater reads the heater; a sensor on the load reads the load. Both are legitimate, and the drawing has to say which is wanted.
How This Construction Fails
- Run at the bonded watt density in free air. The insulation reaches its limit within minutes and the element burns through where the local density is highest. Specify at 1 W/cm² only where the heater is genuinely bonded to metal over its whole area; unbonded, the figure is 0.2 W/cm².
- Loss of the control loop. An open-circuit sensor, a welded relay contact or a controller in manual leaves the element at full power with nothing watching it — the case the series thermal cutoff exists for, and the reason it must not be omitted to save a part.
- Overheating the encapsulant. The epoxy is the weakest link at 150 °C and it fails from the inside, where nothing is measuring; the plate face can look reasonable while the potting against the element is already cooking.
Where This Construction Is the Wrong Answer
- Do not plan on running above 150 °C. That ceiling belongs to the insulation system, not to the element alloy, and it is not a figure that derating extends — past it the insulation degrades and the dielectric strength goes with it.
- Do not put an epoxy plate where a flexible heater is really wanted. It will not conform, and clamping it against a surface that is not flat loads the potting rather than the joint.
How to Specify One
This is a made-to-drawing part, so there is no catalogue number to quote. A quotation is built from the following, and the more of it that arrives with the enquiry the fewer rounds it takes:
- An outline drawing, or a sketch with dimensions: overall size, holes, cut-outs, radii and the lead exit position.
- The supply voltage, and whether it is AC or DC. The element is wound for one voltage; it is not a switchable range.
- The power required, or — better — the temperature to be reached and the mass or flow it has to be reached in. Given the second, the wattage can be calculated instead of guessed.
- What the heater is attached to, and how. This is what decides which watt density figure applies, and it is the question a quotation cannot proceed without.
- The ambient, and the lowest temperature the assembly must start from. A heater sized for a 20 °C start is undersized for a -30 °C one.
- Duty cycle: continuous, intermittent, or a warm-up to a deadline. Time to temperature is a specification, not a by-product.
- Sensor and protection: which sensor, where it goes, and which limit device is fitted in series with the element.
- The certification the end product is built to, named on the enquiry rather than after approval.
- Quantity and target price, because the construction that is right for fifty pieces is often not the one that is right for fifty thousand.
- The plate material, thickness and mounting hole pattern, and what the plate is bolted to.
Lead time: Samples 7-10 days from approved drawing; production 15-20 days.
Battery Module Epoxy Heating Plates — Capability Table
These are process limits for the construction, not the specification of one stocked item. Every line is what the factory can hold; what your part holds is fixed on your drawing.
| Parameter | Specification | Limit / note |
|---|---|---|
| Construction | Resistance wire or foil element potted in thermally conductive filled epoxy on a metal plate | Cured under vacuum so there are no voids in the heat path |
| Plate material | Aluminium 6061 or 3003, 2 mm to 6 mm | Aluminium for spreading, stainless where the chemistry demands it |
| Total thickness | 4 mm to 10 mm | Plate plus encapsulation |
| Maximum size, one piece | 300 x 500 mm | Larger plates are built as multiple circuits on one plate |
| Dimensional tolerance | u00b10.5 mm on the plate, u00b11 mm on the encapsulation | |
| Supply voltage | 12 V, 24 V, 48 V | Wound to order |
| Resistance tolerance | u00b110% | At 20 u00b0C |
| Watt density | 0.2 W/cmu00b2 typical, 1.0 W/cmu00b2 maximum | Against a load in contact; free-standing operation runs far lower |
| Continuous working temperature | -40 u00b0C to +150 u00b0C | Set by the epoxy, not by the element |
| Dielectric strength | 2500 V AC, 1 minute | Element to plate |
| Insulation resistance | greater than 100 Mu03a9 at 500 V DC | Also after 48 hours humidity conditioning |
| Ingress protection | IP65 as standard, IP67 with a moulded lead entry | The encapsulation is the seal |
| Mounting | Tapped holes, clearance holes, studs or bonded | Machined into the plate before potting |
| Sensor options | NTC, PT100 or thermostat potted into the same plate | Reads the plate, which is what the load actually sees |
| Certifications available | UL 499, IEC/EN 60335, RoHS, REACH, CE, IATF 16949 | Construction level |
| Uniformity | u00b12 u00b0C across the plate face | A cell that is 5 u00b0C warmer than its neighbours ages faster than them, permanently |
| Vibration | Tested to IEC 60068-2-6, 10-500 Hz | The encapsulation is what makes a potted plate survive a vehicle floor |
Capability figures are for resistance elements encapsulated in thermally conductive filled epoxy on a metal plate. The +150 °C continuous limit is a property of the encapsulant, and it is the lowest limit of any construction in this catalog — the element and the plate would both tolerate far more.
